● 12-bit resolution A/D
● Designed to pair with an A/D board to increase channel count and signal conditioning capabilities
● 32 single-ended or 16 differential inputs
● 6 software programmable ranges:±25mV, ±50mV, ±0.1V, ±2.5V, ±5V, ±10V

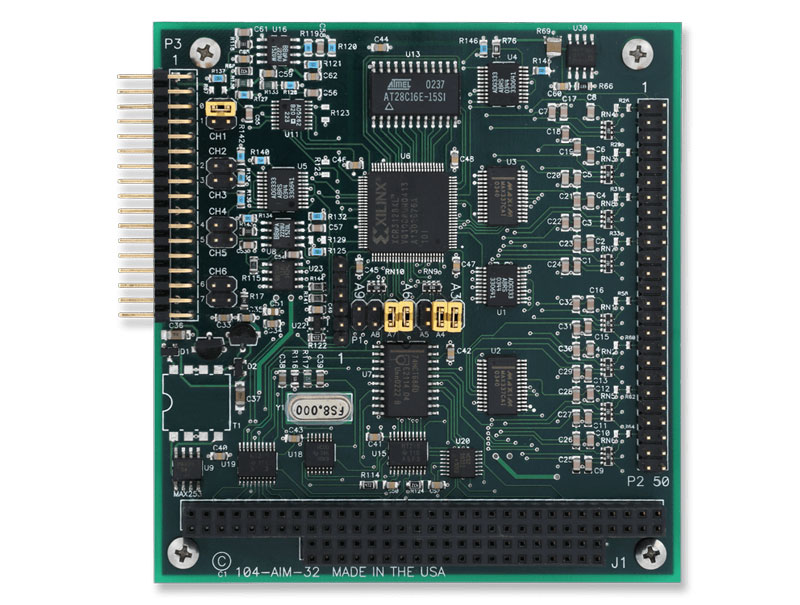

● Up to 7 104-AIM-32s can be stacked per A/D board for up to 224 S.E. or 112 diff. inputs
● +5VDC only operation
● Precision 15VDC sensor excitation
● 0 to 70°C operating temperature (-40 to +85°C Optional)
● Input Signal Conditioning Options:
- 4-20mA inputs
- RTD measurement
- Thermocouple measurement
- Voltage divider on each input
- RC filters on each input
- Bridge completion configuration
● RoHS Available. Please contact us for ordering information
● Equipment monitoring
● Environmental measurements
● Embedded OEM
● Education/Laboratory
● Portable
● Industrial Automation
● Precision Measurement
● Analysis, Monitoring, and Control
