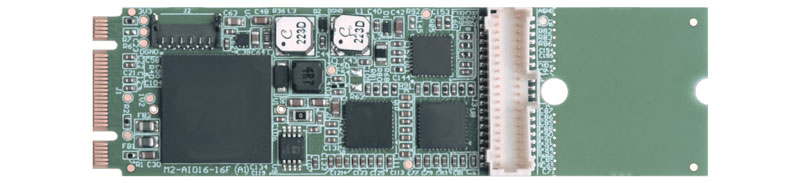

● M.2 2260/2280 “B/M” size Card with latching I/O connectors

● 2× 16-bit, bipolar, differential, A/D converters sampling at up to 1MHz, simultaneously (2MSPS aggregate)

- Software Selectable as 16+0, 8+4, or 0+8 (Single-Ended + Differential Inputs)

- 7 channel-by-channel Programmable differential input ranges from ±0.3125V up to ±12V

- A/D Starts Via Software, External Input, or Periodic Timer

- A/D “Scan Start” Mode Optimizes Inter-Channel Timing

- High Impedance, 16-Channel Input: 500 MΩ

- 4 kSample FIFO plus DMA for efficient, robust data streaming

● Four 16-Bit Analog Outputs:

- 5 per-channel programmable ranges: 0-5V, 0-10V, ±2.5V, ±5V, ±10V

- Outputs drive ±10mA

- “FDS” model allows hardware-timed DMA+FIFO (8 kSamples) waveform streaming on up to four DACs

● Two digital I/O with flexible secondary functions

● Onboard watchdog with status output

● RoHS Standard

● FACTORY OPTIONS:

- 4-20mA or 10-50mA ADC input ranges

- Extended Temperature Operation (-40°C to +85°C)

- Support for Wind River VxWorks (call for ordering information)

Available accessories include a variety of screw terminal boards for quick and easy connectivity as well as 2mm mounting hardware. Alternately, custom hardware cables and/or interfaces can be produced to fit your specific application requirement.

The card is supported for use in most operating systems and includes a free Linux and Windows compatible software package. This package contains sample programs and source code in Visual Basic, Delphi, and Visual C++ for Windows. Also provided is a graphical setup program in Windows. Linux support includes installation files and basic samples for programming from user level via an open source kernel driver. Third party support includes a Windows standard DLL interface usable from the most popular application programs. Embedded OS support includes the family of Windows Operating Systems including IoT. ACCES is also now offering a VxWorks driver/library for the ultimate real-time process monitoring and control solution.
