● Universal PCI, PCI-X, 3.3V and 5V compatible (Call for PCI-Express availability)
● Sixteen optically-isolated, non-polarized digital inputs
● Opto-isolated channel to channel and channel to ground
● Sixteen fully protected FET outputs
● Can detect input state change and assert interrupt
● No switches or jumpers to set, all options software selectable
● RoHS Available. Please contact us for ordering information
● Support for Wind River VxWorks (call for ordering information)
● Automatic Test Systems.
● Security Systems, Energy Management.
● Robotics.
● Relay Monitoring and Control.
● Parallel Data Transfer to PC.
● Sensing switch closures or TTL, DTL, CMOS Logic.
● Driving Indicator Lights or Recorders.

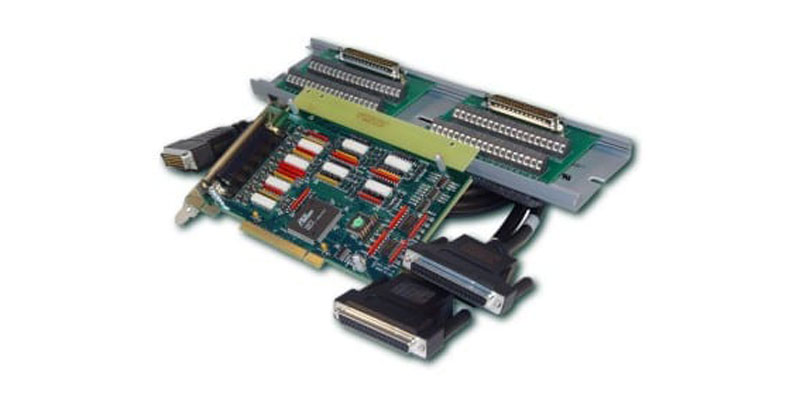

The I/O is accessed via a 78 pin DBF connector on the mounting bracket of the card. A molded breakout cable (model CAB78-37/2) is optionally available that divides the 78 pins into two DB37F connectors. Also available is a kit (model STB-37/2 Kit) which includes the cable and two STB-37 Screw Terminal Cards that mount into an included one-foot length of Snap-Trak.
Drivers for various operating systems are also provided, including active support for Windows XP -> 10 — all in both 32-bit and 64-bit flavors, and including consumer, server, and embedded varieties — as well as the 2.6 and newer Linux kernels and recent OSX / macOS versions. Many products continue to ship with driver support for Windows 95, 98, Me, NT4, and Windows 2000, but support for these operating systems is considered deprecated.
