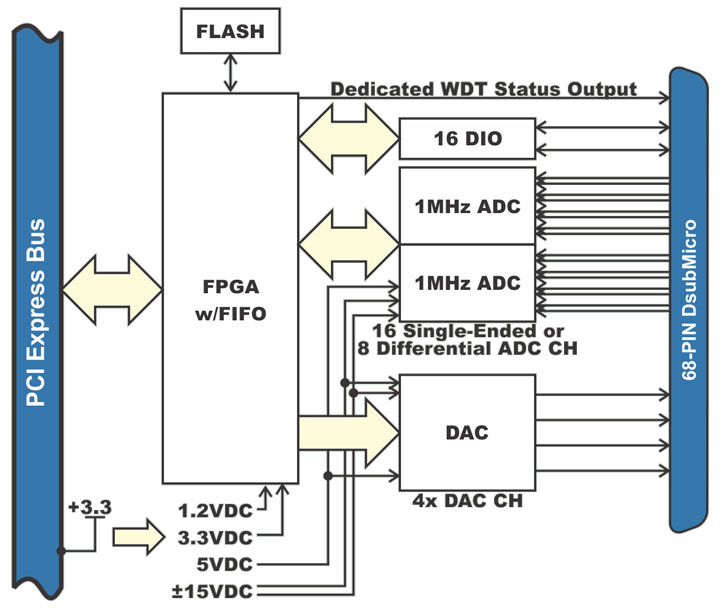

● PCI Express 1×lane half-length
● ADC Type: Successive Approximation
● Resolution:16-bit
● Sampling Rate: 2 Msamples/second aggregate
● Number of Channels: 16+0, 8+4, or 0+8 (SINGLE-ENDED + DIFFERENTIAL) (software selectable)
● Ranges: ±12, ±10, ±5, ±2.5, ±1.25, ±0.625, ±0.3125V with 0, 0, ±5.12, ±7.68, ±8.96, ±9.60, ±9.92V common mode rejection, respectively
● 4-20mA or 10-50mA: Factory Option
● Accuracy: 0.094% Full-Scale (FS) Uncalibrated, 0.0015% FS Calibrated (for best accuracy, system calibration is recommended)
● Integral Nonlinearity Error: ±0.6 LSB to ±1.5 LSB depending on gain
● No Missing Codes: 16 bits
● Input Impedance: >500MΩ
● Overvoltage Protection: Current limiting through 2 KΩ
● Crosstalk: -120dB @ 10kHz
● Number: 4
● Type: Single-Ended
● Resolution 16-bit
● Unipolar Ranges: 0-5V, 0-10V
● Bipolar Ranges: ±2.5V, ±5V, ±10V
● Conversion Rate: ≥125kHz per channel
● Settling Time: 20us typical, +/-10V (+/-1LSB at 16 bits)
● Output Current: ±10mA per channel, max
● Lines: 16, two 8-bit I/O Groups, each software configurable as input or output
● Input voltage:
- Logic low: 0V to 0.8V
- Logic high: 2V to 5V
● Input current: ±20μA (max
● Output voltage:
- Logic low: 0V to 0.55V
- Logic high: 2V to VCCIO (3.3VDC, 5VDC tolerant)
● Output current:
- Logic low: 24mA sink (max)
- Logic high: 24mA source (max)
● Alternate Functions: ADC Conversion Start, ADC Scan Start, ADC Trigger, ADC Gate, DAC Trigger (“LDAC”), External IRQ
● Dedicated Watchdog Status Output Pin
● Operating Temperature 0° to +70°C, optional -40° to +85°C
● Storage Temperature -40° to +105°C
● Humidity 5% to 95% RH, without condensation
● Power required: +3.3VDC @ 300ma (typical)
● Weight: 53.0 grams
● Size: Length: 92.96mm ( 3.66“ ); Height: 56.134mm ( 2.21”)
● I/O connector:
- On-card: 68-Pin SCSI Female, with latches
● This product is designed to be in full compliance with CE requirements.
