● 144 channel high-current digital I/Os
● On each 24-bit group, four and eight bit ports independently selectable as inputs or outputs
● Jumper selectable 10k ohm pull-up/pull-downs on I/O lines per four and eight bit ports
● Global jumper selectable VCCIO (5V, 3.3V, 2.5V, 1.8V) logic levels
● VCCIO voltage available to the user via 0.5A resettable fuse per 50 pin connector
● Compatible with industry standard I/O racks like Grayhill, Opto 22, Western Reserve Controls, etc.
● FACTORY OPTIONS:
- RoHS compliant version
- Industrial temperature operation (-40°C to +85°C)
- Support for Wind River VxWorks (call for ordering information)
● Process Monitoring
● Manufacturing/Production Test
● Machine Control
● Monitoring and Control
● Security Systems, Energy Management
● Industrial Automation
● Factory Automation
● Laboratory Automation
● Embedded OEM

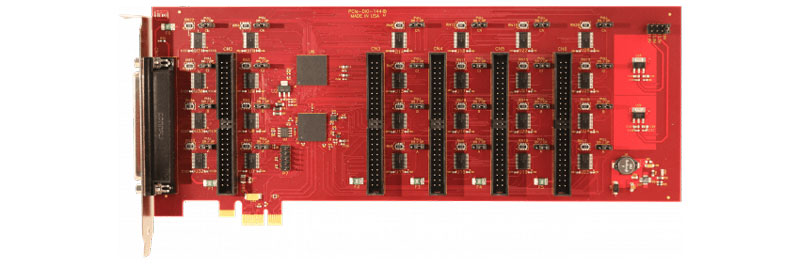

The card is supported for use in most operating systems and includes a free DOS, Linux (including macOS), and Windows XP -> 10, both 32 & 64 bit compatible software package. This package contains sample programs and source code in Visual Basic, Delphi, and Visual C++ for Windows. Also provided is a graphical setup program in Windows. Linux support includes installation files and basic samples for programming from user level via an open source kernel driver. Third party support includes a Windows standard DLL interface usable from the most popular application programs, and includes LabVIEW VIs. Embedded OS support includes Windows Xpe, WES7, vxWorks, etc.
