● RoHS compliant, single-port serial communications adapter for USB 2.0 or 3.0

● Add a RS-232, RS-422 or RS485 serial port to any USB equipped computer

● Compact, industrial, military-grade metal backshell

● Industrial operating temperature (-40°C to +85°C) standard

● Includes type FT232R UART with 128-byte receive/256-byte transmit FIFO buffers

● Supports 7 or 8 data bits, 1 or 2 stop bits, and odd /even / mark / space / no parity

● ±15kV ESD Protection (IEC 6100) on all RS-232/422/485 signals protects against spikes and ground loops

● Fully shielded cable protects data from EMI and RF interference

● Software programmable baud-rates

● All required power drawn from host USB port, no external power adapter required

● Supported for use in Windows (including Windows CE) and Linux operating systems

● USB-232-IND：

- Supports all RS-232 signals, including handshaking

- Data transfer speeds up to 1Mbps asynchronous

● USB-422-IND：

- Supports full-duplex (4-wire) RS-422 protocol

- Data transfer speeds up to 3Mbps asynchronous

● USB-485-IND：

- Supports multi-drop (2-wire, half-duplex) RS-485 protocol

- Data transfer speeds up to 3Mbps asynchronous

● USB-422-485-IND：

- Supports full-duplex RS-422/485 protocol

- Supports 4-wire RS-485 protocol

- Data transfer speeds up to 3Mbps asynchronous

- Pinout compatible with legacy model USB-485

● FACTORY OPTIONS：

- Removal of RC Termination from receiver lines (RS-422 and RS-485 models)

- To fully comply with IEC60945 and IACS E10, the factory option Halogen Free Flame retardant (HFFR) cable is required

● Printers

● Scales

● Transportation

● Barcode Readers

● Mobile

● GPS Devices

● Point of Sale

● Medical

● The ADAP9 accessory provides a screw terminal connection to break out the RS-232, RS-422, or RS-485 signals on the DB9M connector.

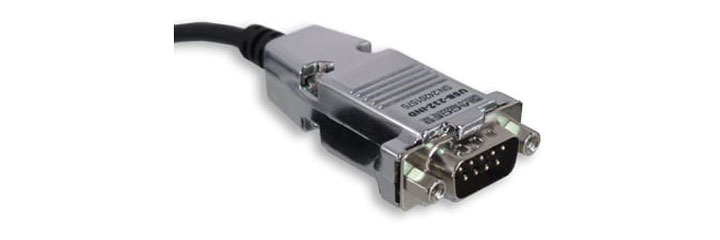

● The USB serial converter is equipped with a 6 foot, fully shielded USB cable, a USB type A connector for connection to a computer USB port, and a male DB-9 for connection to a RS-232, RS-422, or RS-485 equipped data or communication terminal.

● The USB serial converter installs into any operating system as a standard serial COM device, allowing all 3rd party software to operate the serial port as usual. Samples in a variety of languages and environments are provided, including a Windows utility “WinRISC”, a “Really Incredibly Simple Communications” terminal program. Drivers are provided for Windows (including Windows CE) and Linux, and are available at no cost for most other operating systems.
