● High-speed USB 2.0 device, USB 3.0 and 1.1 compatible
● 48 lines of digital I/O
● High retention type B USB connector
● Mini USB header connector in parallel with type B for stacking and embedded applications
● Six (6) 8-bit ports independently selectable for inputs or outputs
● All I/O lines buffered with 32 mA source, 64mA sink current capabilities
● I/O Buffers can be enabled or tri-stated under program control
● Drivers and sample application provided
● Jumper selectable I/O pulled up to 5V for contact monitoring, pulled down to ground or floating
● Jumper selectable power provided via USB cable or external power supply for higher source current capabilities
● Resettable fused +5VDC outputs per 50-pin connector
● Standard 50-pin IDC-type shrouded connectors with key
● PC/104 size (3.550 by 3.775 in.)
● Rugged industrial enclosure
● Compatible with industry standard I/O racks like Grayhill, Opto 22, Western Reserve Controls, etc.
● Labview VI driver
● Now with Firmware 2.0 features!
- Onboard Watchdog Timer, configurable power-on defaults, digital input debouncing and latching, digital output Pulse Width Modulation (PWM) and Matrix Mapping
● FACTORY OPTIONS：

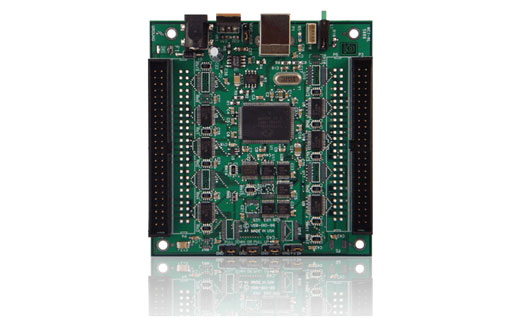

- Board only version with no enclosure
- External power components and regulated AC/DC adapter
- Extended operating temperature (-40° to +85°C)
- DIN rail mounting provision
● Support for Wind River VxWorks (call for ordering information)
● Mobile Solutions
● Test Equipment
● Kiosks
● Robotics
● Machine Control
● Laboratory Monitoring and Control
● Security Systems, Energy Management
● Relay Monitoring and Control
● Sensing Switch Closures or TTL, DTL, CMOS Logic
● Driving Indicator Lights or Recorders
● Industrial Automation
● Embedded OEM

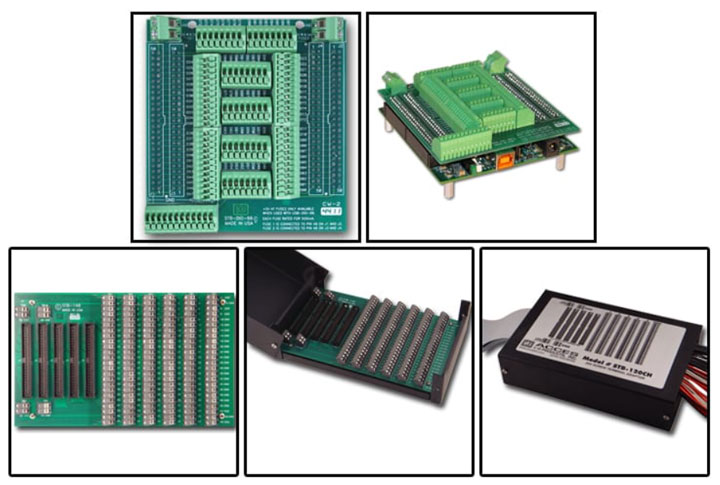

● Direct connect spring-cage terminal boards brings out all DIO signals (STB-DIO-96).
● Additional accessories include flat ribbon cables and DIN-rail mountable screw terminal boards for remote wiring and installation.
● For isolated inputs and outputs, we have 2 types of accessories：
- Our low cost IIB-24 provides optically isolated inputs to any of our 50-pin connectors via one of our cables.
- Our IOB-96 has High-Side Power MOSFET outputs that mate directly to the board only (-OEM) versions of our products.
● To make use of the miniature embedded USB header connector, we offer a variety of embedded OEM USB cables.
