● 5-port USB 3.1 Gen 2 hub with data transfers up to 10Gbps
● USB C with Power Delivery (PD) 3.0 upstream to host PC at up to 20V @ 5A
● One downstream USB Type C with PD 3.0 at up to 20V @ 5A
● Two USB Type C downstream ports with Battery Charging v1.2 and Apple Charging standards (up to 2.8A per port), two Type A up to 1.8A
● IEC 61000-4 Lvl 4 ESD, EFT & Surge Protection on all USB data lines
● Rugged, industrial grade (-40?C to 85?C) operation
● Locking upstream, downstream, and power connectors prevent accidental disconnects
● SuperSpeed+ (10Gbps), SuperSpeed (5Gbps), Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps) transfers supported on all ports
● Requires 20V – 26V power via DC power jack or a pair of screw terminals.(Our optional power supply provides 24V power)
● Compact, steel, low-profile enclosure
● RoHS compliant
● FACTORY OPTIONS：

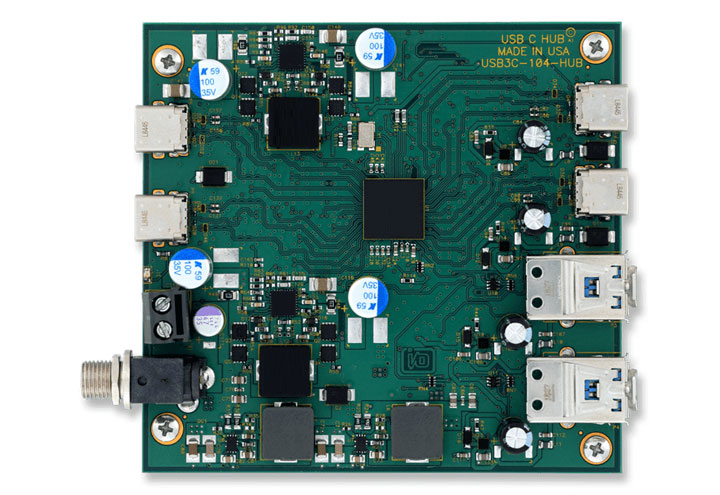

- OEM (board only) version with PC/104 mounting holes and PCB footprint for added flexibility in embedded applications
- Economy version equipped with standard, instead of high-retention connectors
- High retention screw terminals for external power
- Tantalum capacitors for flight and space-based applications
- Conformal coating
● Military/Mission Critical
● Government
● Medical
● Industrial Automation
● Transportation/Automotive
● Embedded OEM
● Home
● Portable
● Laptop
● Security
● Education
● Laboratory
● Kiosk
Available accessories include a wide variety of standard USB cables and mounting provisions for quick and easy-to-use, out of the box, connectivity. Mounting provisions include DIN rail and various panel mounting plates. Also, external instrument-grade power supplies are available.
No driver installation is required for the USB3C-104-HUB product. Any USB compliant operating system will automatically install it. It will enumerate as a Generic Hub which uses the USB Hub Class Driver that is built into USB compliant operating systems such as Linux (including Mac OS X) and Windows.
