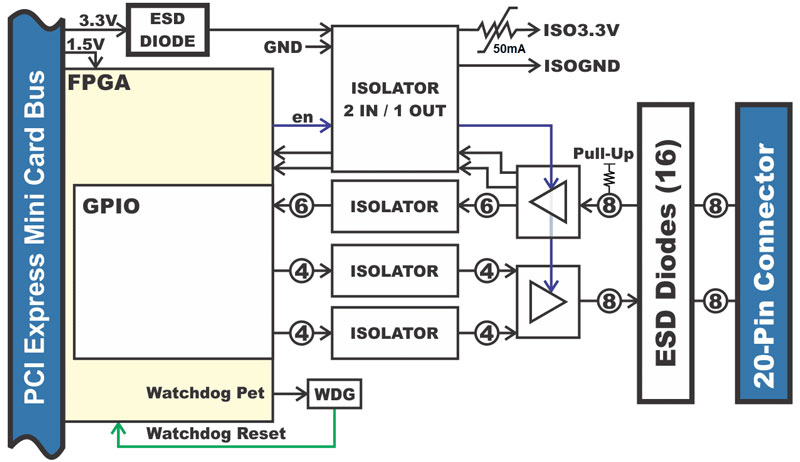

● PCI Express Mini Card: Type F1 “Full Length” V1.2
● Number: 8
● Logic High: 2.0V to 5V
● Logic Low 0V to 0.8V
● Number: 8
● Logic High: 2.0V (min), source 32mA
● Logic Low: 0.55V (max), sink 64mA
● Power Output: +3.3VDC via 50mA polyfuse (resetting)
● Tru-ISO: IPC-2221B
● I/O to PC:
- 1500 V peak (AC or DC)
- UL-1577
- UL recognition (pending): 5000 V rms for 1 minute
● Careful attention has been paid to isolation design, including extensive keep-out zones and hand-routed circuit paths, as well as component and material selection
● Operating Temperature 0° to +70°C, optional -40° to +85°C
● Storage Temperature -40° to +105°C
● Humidity 5% to 95% RH, without condensation
● Power required: +3.3VDC @ 500ma, +1.5VDC @ 415mA
mPCIe card characteristics
● Weight:7.2 grams
● Size: Length: 50.95mm (2.006″); Width: 30.00mm (1.181″)
● I/O connector:
- On-card: 501190-2017 20-pin latching
- Mating: Molex 501189-2010
● On-cable I/O connector
- On-cable: Female, D-Sub Miniature, 25-pin
- Mating: Male, D-Sub Miniature, 25-pin
● This product is designed to be in full compliance with CE requirements.
